Proxmox installation steps

Overview

This post is a reference for me and anyone else that finds it useful.

I’ve never bothered documenting this before, which leads me to missing stuff every time I set up a new box.

This post will continue to be updated if I add anything new.

Installation

  • The primary thing to get right here is the storage configuration. Even if it’s a single disk I will typically do ZFS.
    • Click on Options. Choose whichever ZFS topology you want.
    • Click on Advanced Options. Change Compression from “on” to “lz4”. This is the default anyway, but I like to be sure.
    • ashift should be set to 12 or 13. I typically do 12, as this targets 4k physical sectors.
    • Make sure that you have the correct disks selected. Any disk you do not want to be part of the boot pool should be set to “do not use”.
  • For the rest of the setup you can pretty much just click Next Next Next. I do recommend setting the correct time zone and a good DNS server.

Post-Install

  • If you don’t have an Enterprise subscription we need to disable the enterprise repository and enable the one for no-subscription.

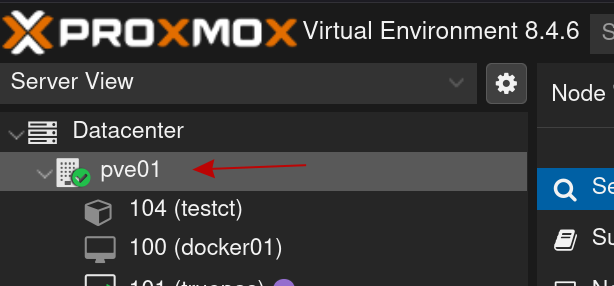

    • Click on the individual node (not Datacenter) and go to Updates > Repositories. Picture showing where to click on the individual node
    • Click on Add and select No Subscription from the dropdown.
    • Next, select the repositories labeled “Enterprise” and disable them.
  • Enable Debian Non-Free-Firmware repository.
    • This one can’t be done through the GUI. SSH in or use the web shell.
    • Edit the sources
      vim /etc/apt/sources.list.d/pve-no-enterprise.list`
    • Add the following repo, replacing $VERSION with your release’s Debian base (bookworm, trixie):
      https://deb.debian.org/debian $VERSION main non-free-firmware
    • Install the firmware microcode for your hardware vendor
      • Run apt update
      • apt install intel-microcode OR apt install amd64-microcode
  • At this point, update the system. Reboot if needed.
  • Next, lets fix the ZFS configuration.
    • Click on the Datacenter tab and go do down to Storage.
    • Select your zpool (or pools) and click Edit. You will have to do this for every pool individually.
    • Enable thin provisioning.
    • Change the Block Size to 64k or 128k. Either is probably fine, but the default 16k is abysmal for VM disks. This setting is the zvol equivalent to the recordsize property on datasets. Having this not match your workload will usually result in massive write amplification. This is why ZFS got a reputation for quickly killing SSDs, but it doesn’t have to if you configure your pool correctly.
  • Click on the individual node again. Go to System > Network and select any bridges that you’ve created. Set them to be VLAN-aware.
  • Set up the notification system under Datacenter > Notifications. I will typically have it send me only backup failure notices and warnings about things like failed disks.
  • I will typically set up a VM template at this stage to save myself a bunch of work later. See links below for options.

Other Notes

If you’re trying to set up a new ZFS storage pool and the disks aren’t showing up in the interface - the Proxmox interface will not show you any disks that have partitions on them.

If you’re expecting a drive to show up and it’s not you can go through the following procedure on the command line.

  • lsblk to find the path of the drive that you need to wipe.
    lsblk -o NAME,SIZE,MODEL
  • Wipe out all of the partitions.
    wipefs -a /dev/sdX
  • The ZFS labels (which contain pool metadata) may survive wipefs as it’s stored on the first few sectors of the drive, so lets make sure that any existing labels are gone. If this drive has never been used in a zpool before, you can skip this step.
    zpool labelclear /dev/sdX
  • Try creating your pool again.
