Overview

Recently I watched the following YouTube video by apalrd on how he was using Nginx as a caching reverse proxy for Debian, Ubuntu, and other APT repositories.

I was inspired by this to do the same, but instead of spinning up an LXC for this task, I’m using the built-in Docker functionality in TrueNAS. With Electric Eel introducing Docker Compose support, TrueNAS is now far more flexible in this regard.

Here’s how to accomplish this:

1. Create ZFS datasets

If you don’t already have one, I recommend having a single root dataset to manage all of your docker app configurations. I just called mine appdata. With how TrueNAS handles mounting datasets, the mountpoint for this ends up being /mnt/<poolname>/appdata. This will be important later. My pool is just named tank, so I’ll be using that name going forward.

Create 2 child datasets of appdata - one for the nginx config, and one for the actual proxy cache (as well as our access.log and error.log)

/mnt/tank/appdata/debcache
/mnt/tank/appdata/nginx
I recommend setting the owner of these datasets to be systemd-timesync, as the UID TrueNAS uses for that user matches up with the UID of the nginx user inside of the container. It will save a lot of headaches with regards to permissions. Alternatively, you could tell Nginx to run as a specific user.

2. Create Nginx configuration file

Here’s my (slightly modified) version of apalrd’s debcache.conf:

# Global Cache settings
proxy_cache_path /var/debcache/cache levels=2:2 keys_zone=generic:500m inactive=90d max_size=1000g min_free=5g loader_files=1000 loader_sleep=50ms loader_threshold=300ms use_temp_path=off;
# Log with cache status
log_format cachelog '$remote_addr [$time_local] "$request" $status "$http_user_agent" "$upstream_cache_status"';

# URI paths to avoid cache
# These paths will change to indicate new release contents
# All other .deb files can be cached nearly indefinitely, as the
# version number is coded into the file name.
map $request_uri $nocache {
    ~InRelease 1;
    ~Release 1;
    ~Contents 1;
}

# Deb Server
server {
    # IF you need legacy IP, enable this one
    listen 80 reuseport;

    #Log settings
    access_log /var/debcache/access.log cachelog;
    error_log /var/debcache/error.log;


    # Cache Location
    slice 1m;
    proxy_cache generic;
    proxy_ignore_headers Expires Cache-Control;
    proxy_cache_valid 200 206 90d;
    proxy_cache_valid 301 302 0;
    proxy_set_header  Range $slice_range;
    proxy_cache_lock on;
    proxy_cache_lock_age 2m;
    proxy_cache_lock_timeout 1h;
    proxy_cache_use_stale error timeout invalid_header updating http_500 http_502 http_503 http_504;
    proxy_cache_revalidate on;
    #Nocache for those entries
    proxy_cache_bypass $nocache;
    proxy_no_cache $nocache;
    # 1G max file
    proxy_max_temp_file_size 1024m;
    # Cache key
    proxy_cache_key      $http_host$uri$slice_range;
    # Upstream Configuration
    proxy_next_upstream error timeout http_404;
    # Cache status
    add_header X-Cache-Status $upstream_cache_status;
    proxy_redirect off;
    proxy_ignore_client_abort on;
    # Upstream request headers
    proxy_ssl_server_name on;

    # Redirect Locations
    # Must include trailing slash!

    # Debian
    location /debian/ {
        proxy_pass http://deb.debian.org/debian/;
        proxy_set_header Host "deb.debian.org";
    }
    location /debsec/ {
        proxy_pass http://deb.debian.org/debian-security/;
        proxy_set_header Host "deb.debian.org";
    }

    # Ubuntu
    location /ubuntu/ {
        proxy_pass http://us.archive.ubuntu.com/ubuntu/;
        proxy_set_header Host "us.archive.ubuntu.com";
    }
    location /ubusec/ {
        proxy_pass http://security.ubuntu.com/ubuntu/;
        proxy_set_header Host "security.ubuntu.com";
    }

    # Kali
    location /kali/ {
        proxy_pass http://http.kali.org/kali/;
        proxy_set_header Host "http.kali.org";
    }

    # Proxmox (non-enterprise)
    location /proxmox/ {
        proxy_pass http://download.proxmox.com/debian/;
        proxy_set_header Host "download.proxmox.com";
    }

    # Caddy Server
    location /caddy/ {
        proxy_pass https://dl.cloudsmith.io/public/caddy/stable/deb/debian/;
        proxy_set_header Host "dl.cloudsmith.io";
    }

    # Nodesource NodeJS
    location /node/ {
        proxy_pass https://deb.nodesource.com/node_20.x/;
        proxy_set_header Host "deb.nodesource.com";
    }

    # Stats endpoint
    location = /nginx_status {
        stub_status;
    }

    # Static Files (conversion scripts)
    root /var/debcache/static/;
    autoindex on;
}

Save this configuration file to /mnt/tank/appdata/nginx/debcache.conf on your TrueNAS server.

Some notes on what I’ve changed:

Inactive items are only kept for 90 days instead of 10 years.
Fixed a missing slash in the nodesource repository (by the time you read this it may be fixed on apalrd’s original post).

3. Change the HTTP listening port for the TrueNAS GUI so that Nginx can bind that port instead.

Go to System > General Settings and click on Settings under the GUI box.
Change the Web Interface HTTP port to something other than 80. I’ve set mine to 8080.

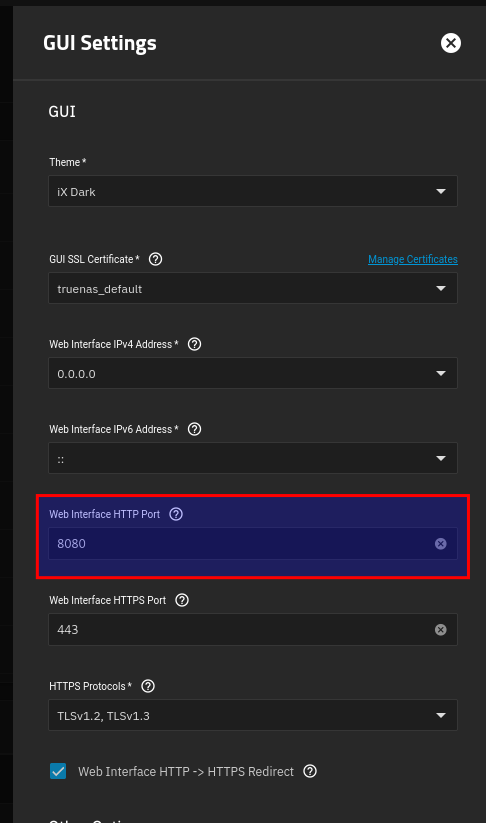

TrueNAS GUI HTTP port setting

4. Install Nginx as a custom app

Go to the Apps screen, click on Discover Apps, and click on the three dots to the right of Custom App. You should have an option to Install via YAML.

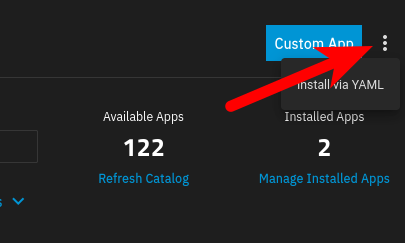

TrueNAS Install via YAML

Paste the below compose syntax into the Custom Config box. Change the path names if necessary.

services:
  nginx:
    container_name: nginx-debcache
    image: nginx
    ports:
      - '80:80'
    restart: unless-stopped
    volumes:
      - /mnt/tank/appdata/debcache:/var/debcache
      - /mnt/tank/appdata/nginx:/etc/nginx/conf.d:ro

Click save, and the Nginx container should deploy.

You can test the configuration by going to http://your-truenas-ip/debian. It should be proxying the Debian apt repository. If you see the index for that repo, the proxy is working.

5. Configure a DNS record (optional)

This step is technically optional, but I recommend it. Whatever you’re using for local DNS resolution, whether it be PiHole, BIND, dnsmasq, etc - create a DNS A record or CNAME for TrueNAS that you’ll use for this specific purpose.

6. Modify your sources.list files

I recommend either using the script that apalrd created, or the Ansible playbook that I wrote..

Please leave a comment if you run into any problems with the playbook - I have come across one or two edge cases that I didn’t account for already - if there are any more, please let me know which repositories and I will attempt to fix it. No promises on turnaround time, though. :P

Conclusion

And that’s all she wrote! You should now have a caching web proxy running off your TrueNAS server with access to that big honking storage array you’ve got in your basement with all the Linux ISOs on it.

Please leave a comment if you found this useful.
